東莞市揚益環保有限公司
廣東 東莞市 | 蔣燕 | 18925824611

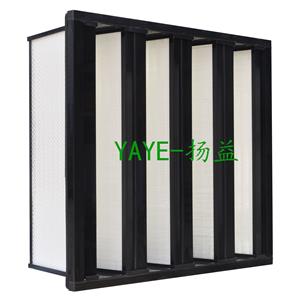

| 產品名稱W型亞高效空氣過濾器 | |
| 詳細信息 W型亞高效空氣過濾器 W type and efficient air filter 特點 Features ●使用壽命長 ●大風量阻力低容塵量大 ●適用于大風量空調通風系統的中級過濾 ●Long service life ●Large volume, low resistance and large amount of dust ●For large volume air conditioning and ventilation system of the intermediate filtration 構成材料及運行條件 Materials and operating conditions ●框材塑膠外框 ●分隔物熱熔膠 ●External franePlastic box ●Space: glue ●密封物聚胺脂膠 ●濾料玻纖濾紙或聚酯纖維（PP） ●SealantGel-glue ●Filter mediaGlass fiber filter or polyester fiber PP ●使用最高溫度濕度80℃80% ●Use the highest temperature, humidity80℃80% 型號尺寸及其他參數（Standard specification） 型號model外形尺寸Outside dimensionsmm額定風量Rated air flowm3/h初阻力Imitial resistancePa效率（比色法）Efficiency%濾料Filter materialsLJ-YGX2V-8J287×287×292800≤12595F8/99F9聚酯纖維Polyester fibers（PP）玻璃纖維Glass fiberLJ-YGX3V-12J490×287×2921200≤12595F8/99F9 LJ-YGX3V-20J490×490×2922000≤12595F8/99F9LJ-YGX3V-20J592×490×2922000≤12595F8/99F9LJ-YGX4V-22J592×490×2922700≤12595F8/99F9LJ-YGX4V-16J592×287×2921600≤12595F8/99F9LJ-YGX3V-22J592×592×2922400≤12595F8/99F9LJ-YGX4V-32J592×592×2923200≤12595F8/99F9*可要據用戶要求定制不同規格型號的過濾器 According to user requirements to customize different specifications and types of filters |
